Tire Gauge with Pyrometer

The RaceSense Professional Tire Gauge with Pyrometer has been designed to save you time in the pits and on the track.

Tire pressures are critical to performance but the majority of gauges can be out by 1 to 2 psi or more. RaceSense Tire Gauge is a high-quality rugged gauge that’s as accurate as those used in the highest echelons of motorsport.

• Accuracy better than +/-0.1 psi*
• Max pressure of 160 PSI - Works between 0-160 PSI
• Rugged metal case and water resistant
• Normal Gauge & fast Multi-tire modes
• Sync to iPhone, Android or computer
• Type K thermocouple probe for temperature measurements

Multi-tire mode

RaceSense has a multi-tire mode which is a real game changer for quick pit stops. There is no need to remember or write down pressures.

• Record pressures on all tires without pressing any buttons
• Starting tire and direction can be preset (counter clockwise/clockwise)
• 2 or 4 tire mode
• Record tire temperatures (inner, middle, outer per tire) with thermocouple probe
• Set car number

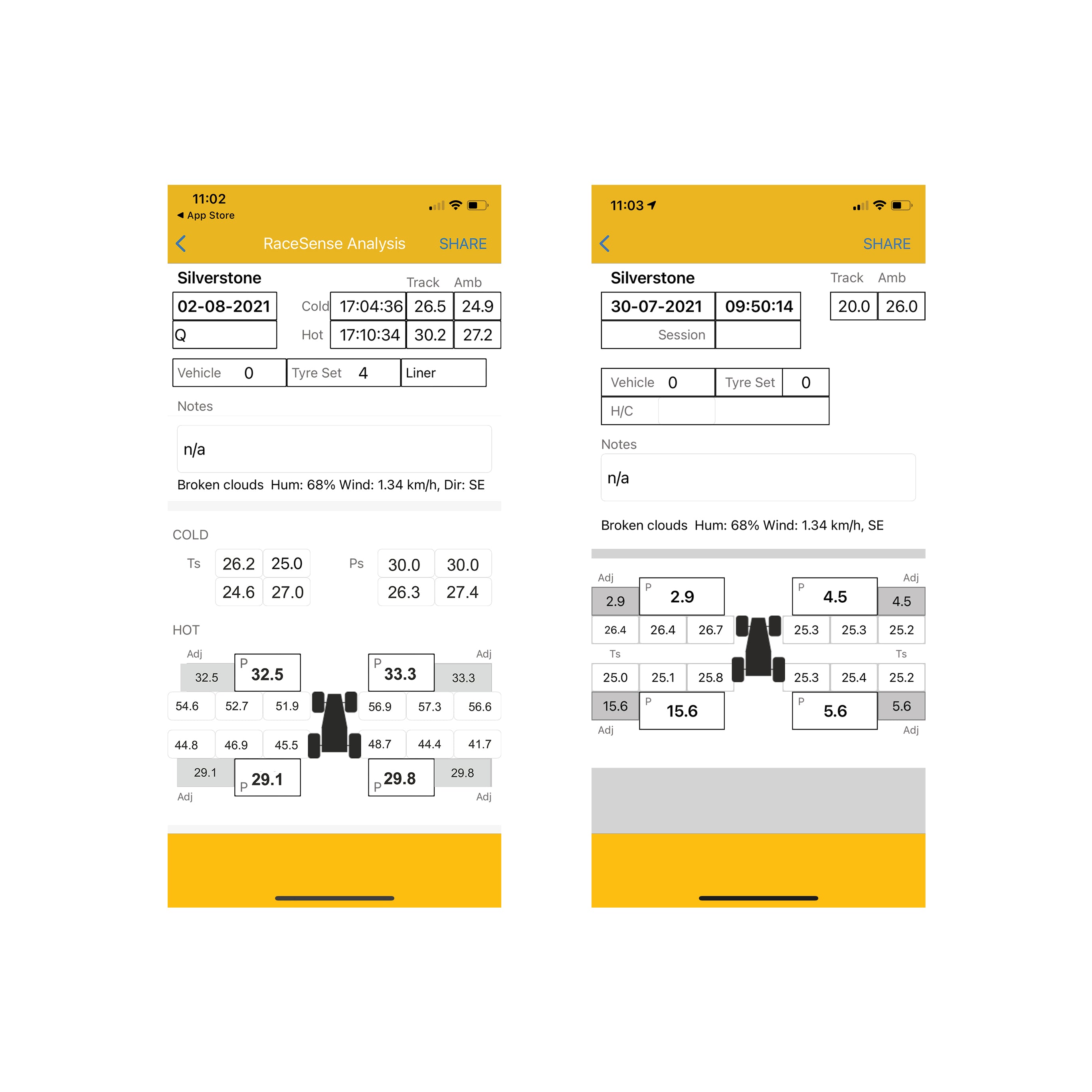

Sync to your phone

Racesense Tire Gauge has a built in phone link, tap to your phone and view the data in the app. No pairing is needed and the upload takes less than a second.

• Shows maximum and adjusted pressures for each tire
• Temperatures from inner, middle and outer of each tire and ambient temperature
• Auto-senses GPS location when downloading
• Auto-senses weather conditions, atmospheric pressure, wind speed and wind direction
• Add notes, edit location
• Export data to CSV file
• NFC enabled phone required: Phone 7 and above, Android 5.5+ with NFC. Apps downloadable from the App store and Google Play.

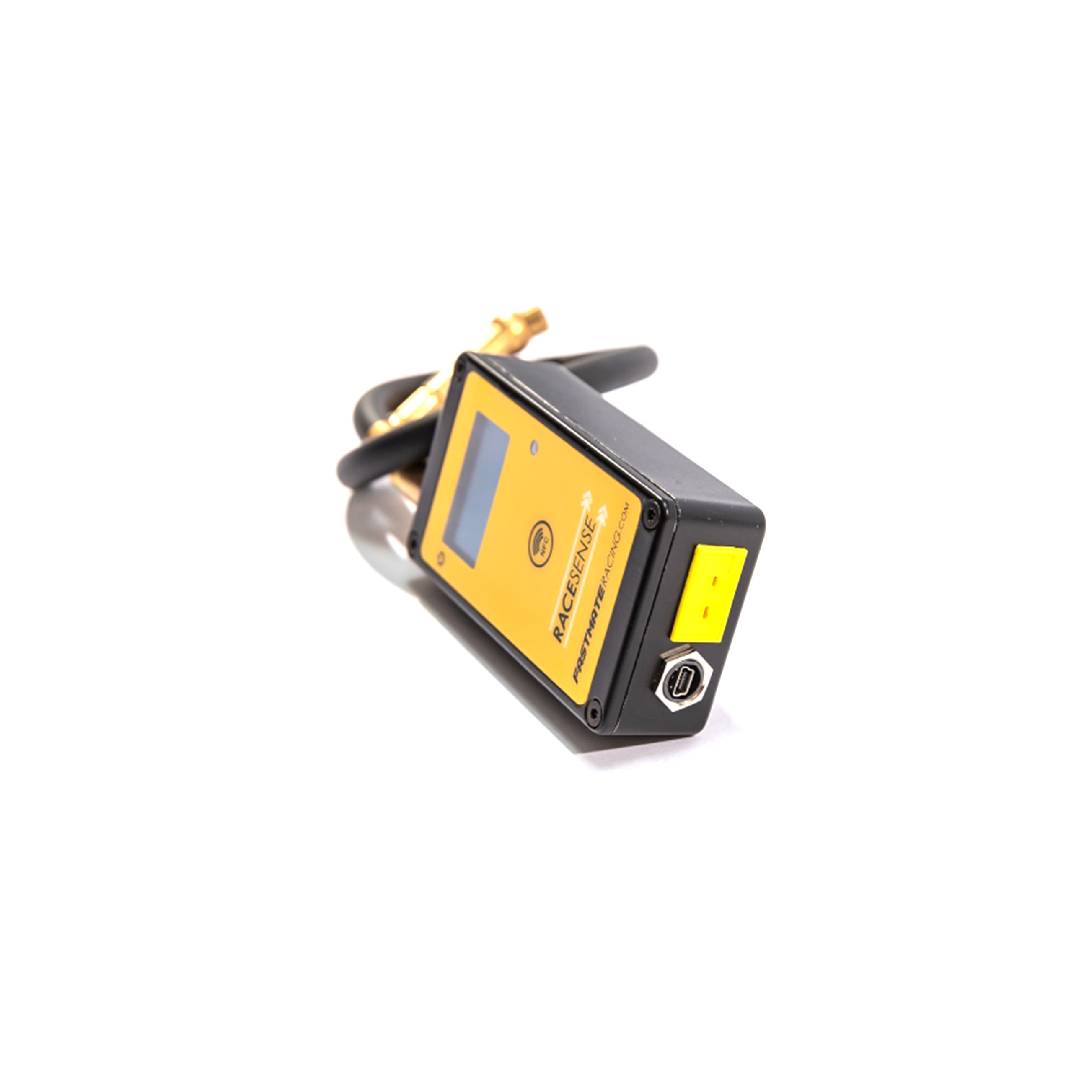

Designed for the harshness of track life

• Die-cast powder-coated aluminium case
• Brass tirechuck is a secure and quick fit
• Brass bleed valve lets you precisely adjust your pressures.
• Polycarbonate screen
• Stainless steel belt clip
• Water resistant Buttons are rubber sealed

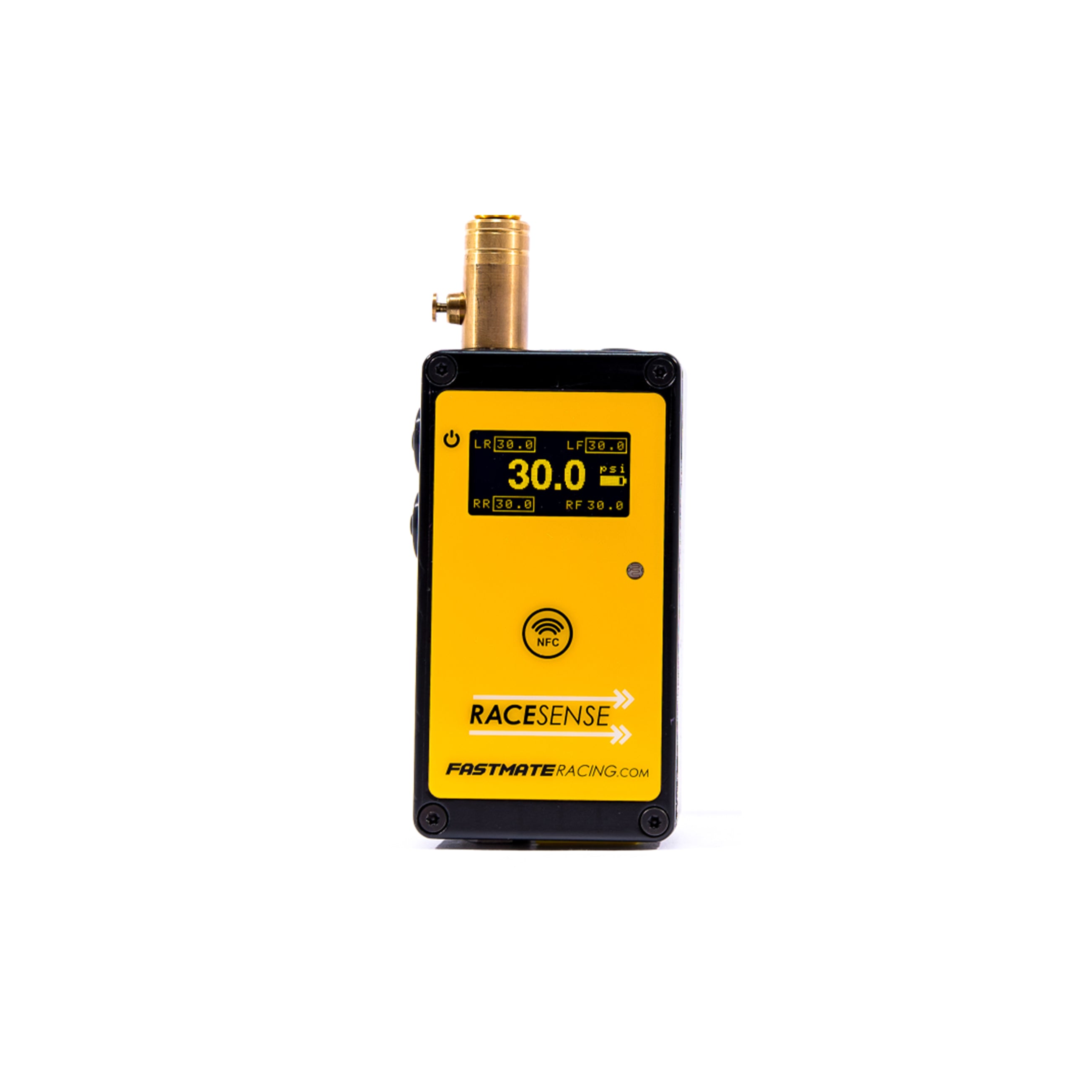

• Sunlight readable OLED display USB connection for recharging, upgrading and data download (battery life > 3 months in standby or 24 hours continuous use).

INCLUDES:  RaceSense Tire Gauge, adjustable depth pyrometer (colour may differ from photo), usb cable, manual, sturdy carrying case.
